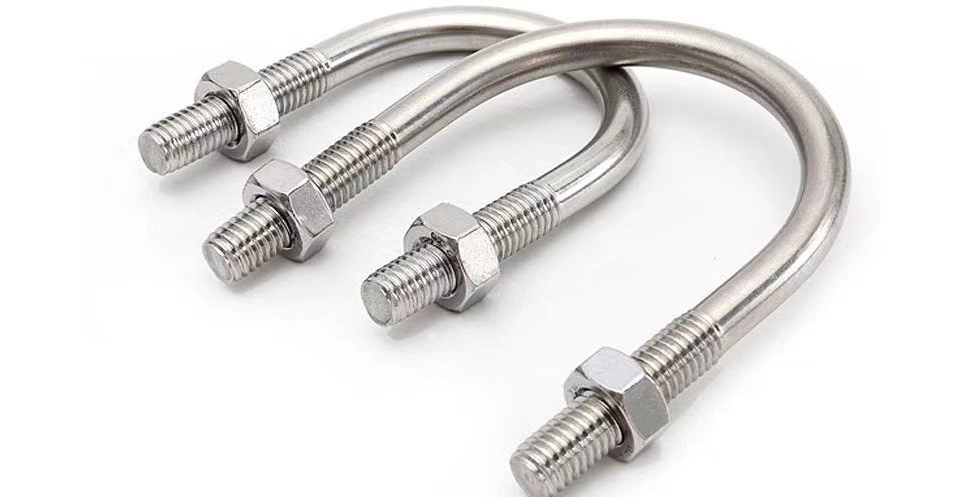

U Bolt
U-Bolts
Our precision-bent U-Bolts are engineered for secure piping support, automotive suspension, and industrial clamping. Designed to grip pipes and conduits firmly, they provide excellent stability and vibration resistance. We manufacture U-Bolts in standard pipe sizes as well as custom geometries to fit specific structural requirements in the Oil & Gas, Plumbing, and Marine sectors.
Technical Specifications
| Shape | U-shaped with threaded legs (Round or Square bend) |
|---|---|
| Thread Type | Metric and UNC, full or partial threads |
| Thread Diameter | M6 to M30 | 1/4” to 1 1/4” |
| Inside Diameter (Pipe Size) | 1/2” to 24” (Custom larger sizes available) |
| Leg Lengths | 50 mm to 600 mm |
| Standards | DIN 3570, ASTM A307, ASME B18.31.5 |
| Materials | Stainless Steel (304, 316), Carbon Steel, Galvanized Steel |
| Finish | Zinc Plated, Hot-Dip Galvanized, Electro-Polished, Black Oxide |
Key Features & Applications
- Pipeline Support & Clamping
- Vibration & Shock Resistance
- Automotive Leaf Springs
- Corrosion Resistant Finish
- HVAC & Plumbing Systems
- Marine Deck Fittings
- Custom Bending Radius
- Heavy Duty Anchor Points
