Pipe Fittings
Pipe Reducers (Concentric & Eccentric)
Used to connect pipes of different diameters. Concentric Reducers maintain a common centerline (ideal for vertical flow), while Eccentric Reducers keep one side flat (ideal for horizontal suction lines to prevent air pockets).
| Types | Concentric (Conical), Eccentric (Flat-sided) |
|---|---|
| Connection | Buttweld (BW), Socket Weld (SW), Threaded |
| Size Range | 1/2" to 48" (Seamless) | Up to 72" (Welded) |
| Standards | ASME B16.9, MSS-SP-75 |

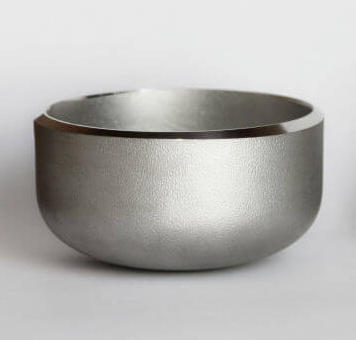

End Caps
Designed to seal the end of a pipe securely. Our ellipsoidal and hemispherical caps are used to shut down pipelines or for future expansion points.
| Shape | Ellipsoidal, Hemispherical |
|---|---|
| Connection | Buttweld, Threaded (NPT/BSP) |
| Size | 1/2" to 48" |
| Std | ASME B16.9 |

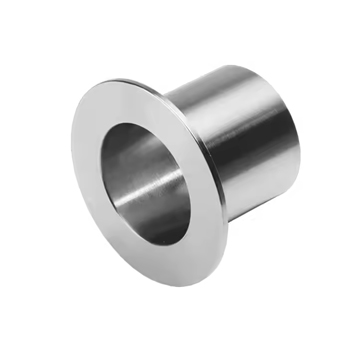

Stub Ends (Lap Joint)
Used with Lap Joint Flanges. The stub end is welded to the pipe, while the flange rotates freely behind it, making bolt alignment easy.
| Types | Short Pattern (MSS), Long Pattern (ASA) |
|---|---|
| Face | Serrated, Flat Face |
| Size | 1/2" to 24" |
| Std | MSS-SP-43, ASME B16.9 |

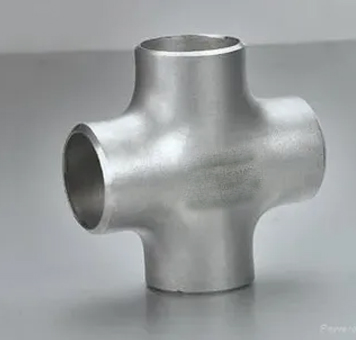

Cross (4-Way)
A 4-way fitting with one inlet and three outlets (or vice versa). Used in fire sprinkler systems and complex distribution lines.
| Types | Equal Cross, Reducing Cross |
|---|---|
| Pressure | Sch 10 - Sch XXS (BW) | 3000#-9000# (Forged) |
| Size | 1/2" to 24" |
| Std | ASME B16.9, B16.11 |

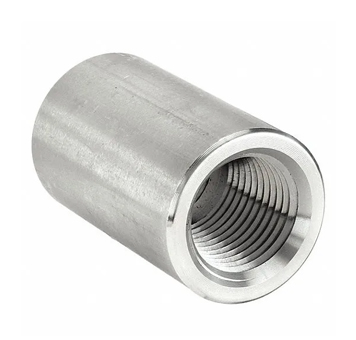

Couplings (Forged)
High-pressure forged fittings used to extend pipe runs (Full Coupling) or create branch connections (Half Coupling) on larger headers.
| Types | Full Coupling, Half Coupling |
|---|---|
| Connection | Socket Weld (SW), Threaded (NPT/BSP) |
| Rating | 3000#, 6000#, 9000# |
| Std | ASME B16.11 |

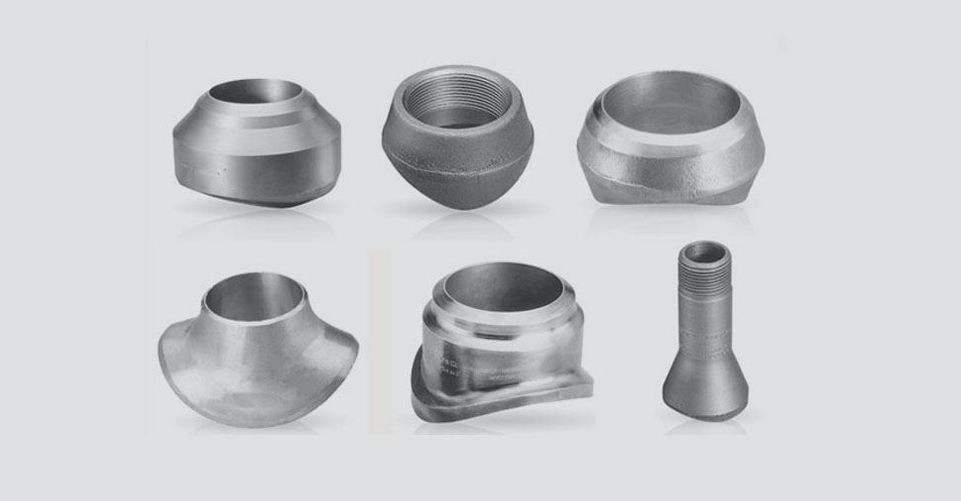

Olets (Branch Fittings)
Reinforced branch fittings used to connect a smaller branch pipe to a larger main run pipe. They offer a stronger connection than standard tees in high-pressure applications.
| Main Types | Weldolet (Buttweld), Sockolet (Socket Weld), Threadolet (Threaded) |
|---|---|
| Special Types | Elbolet, Latrolet, Nipolet, Sweepolet |
| Size Range | 1/8" to 4" Branch on any Run Size |
| Standards | MSS-SP-97, ASME B16.11 |
