Long Nuts

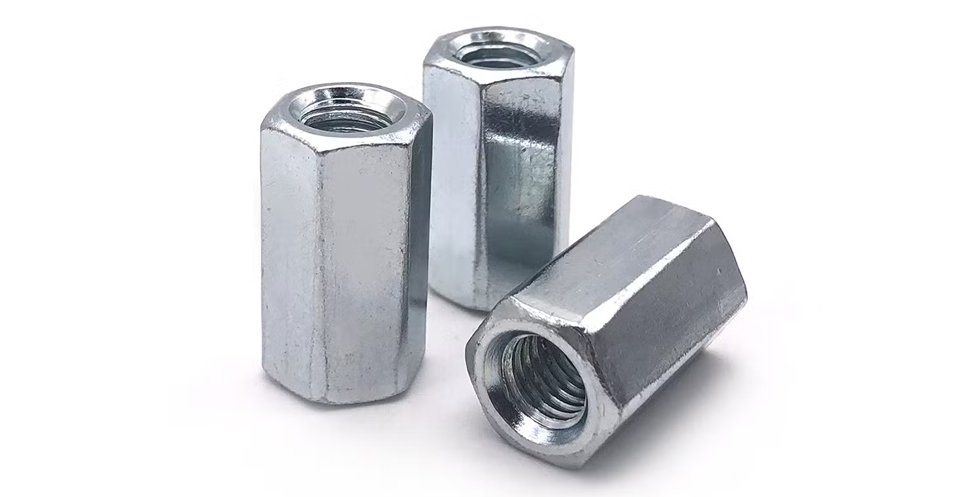

Long Nuts (Coupling / Extension Nuts)
Our Long Nuts, technically known as Coupling Nuts or Extension Nuts, are elongated hexagonal fasteners designed to join two male threads, such as threaded rods or bolts. Essential for structural continuity, they allow for the extension of fastener lengths in hanging systems and leveling applications. Their hexagonal profile ensures easy tightening with standard wrenches, making them a staple in plumbing, construction, and machinery assembly.
Technical Specifications
| Product Type | Hex Coupling Nut / Extension Nut |
|---|---|
| Thread Type | Metric, UNC, UNF, BSW, Left-Hand Threads |
| Size Range | M6 to M72 | 1/4” to 3” Diameter |
| Length | 3x Diameter (Standard) or Custom lengths per application |
| Standards | DIN 6334 (Heavy Hex), ASME B18.2.2, ASTM A563, ISO 4036 |
| Materials | Carbon Steel, Stainless Steel, Alloy Steel, Duplex, Brass, Monel |
| Finish | Zinc Plated (CR3), Hot-Dip Galvanized, Black Oxide, PTFE |
Key Features & Applications
- Connecting Threaded Rods
- Extending Fastener Reach
- Height Adjustment / Leveling
- Suspended Pipe Hangers
- Structural Bracing Systems
- Machinery Spacers
- Retrofitting Assemblies
- Left-Hand Thread Options
