Allen Cap

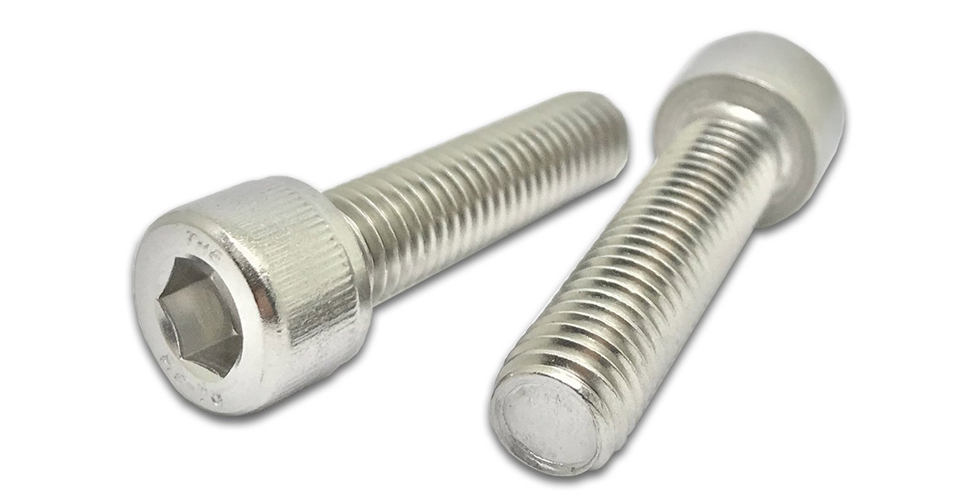

Allen Cap Screws (Socket Head)
Our Socket Cap Screws, commonly known as Allen Caps, feature a cylindrical head with an internal hexagonal drive. Designed for high-torque tightening with an Allen wrench or hex key, they are the preferred choice for applications with limited space where a standard external wrench cannot fit. Their sleek, low-profile design combined with high tensile strength makes them ideal for precision machinery, automotive engines, and die-casting assemblies.
Technical Specifications
| Head Style | Cylindrical Head with Internal Hex Drive |
|---|---|
| Drive Type | Hex Socket (Requires Allen Key / Hex Wrench) |
| Thread Type | Metric Coarse, Metric Fine, UNC, UNF (Fully or Partially Threaded) |
| Size Range | M3 to M64 | 1/8” to 2-1/2” Diameter |
| Lengths | 10 mm to 1000 mm and above |
| Standards | DIN 912, ISO 4762, ASME B18.3, ASTM A574 |

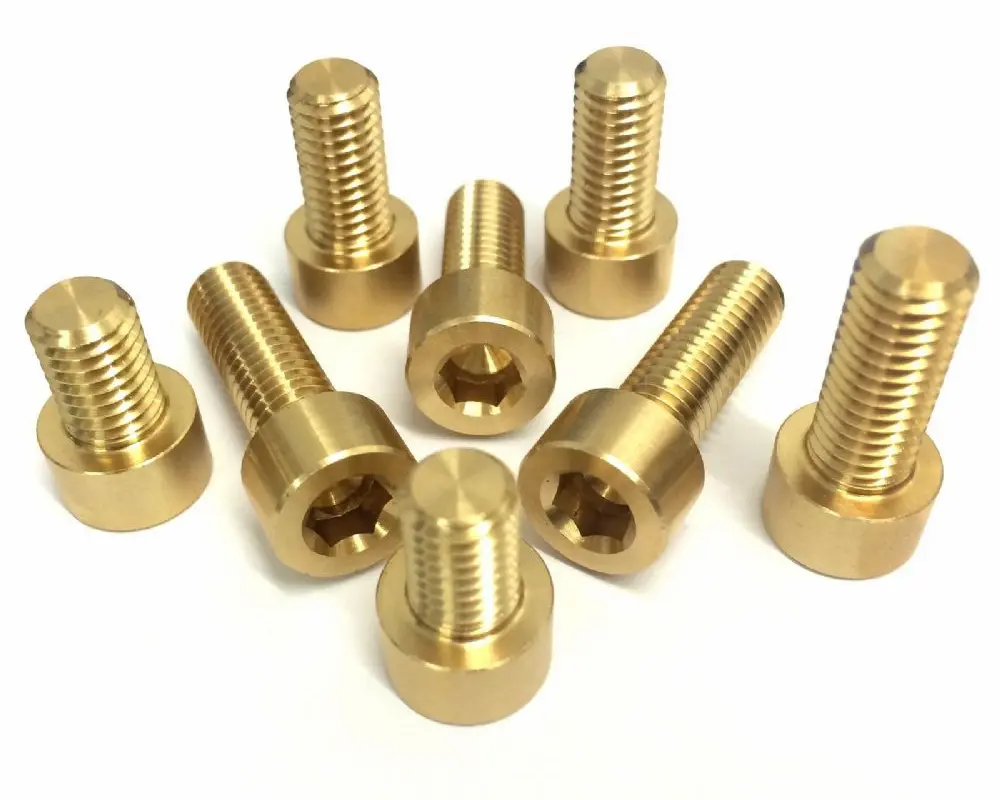

| Materials | High Tensile Alloy Steel (12.9), Stainless Steel (304, 316), Brass, Inconel |
| Finish | Black Oxide (Self Color), Zinc Plated, PTFE Coated, Hot-Dip Galvanized |
Key Features & Applications
- High Torque Transmission
- Compact / Tight Space Installation
- Precision Machinery Assembly
- High Tensile Strength (Grade 12.9)
- Automotive Engine Components
- Aesthetic & Clean Appearance
- Machine Tool Fixtures
- Die & Mold Manufacturing
