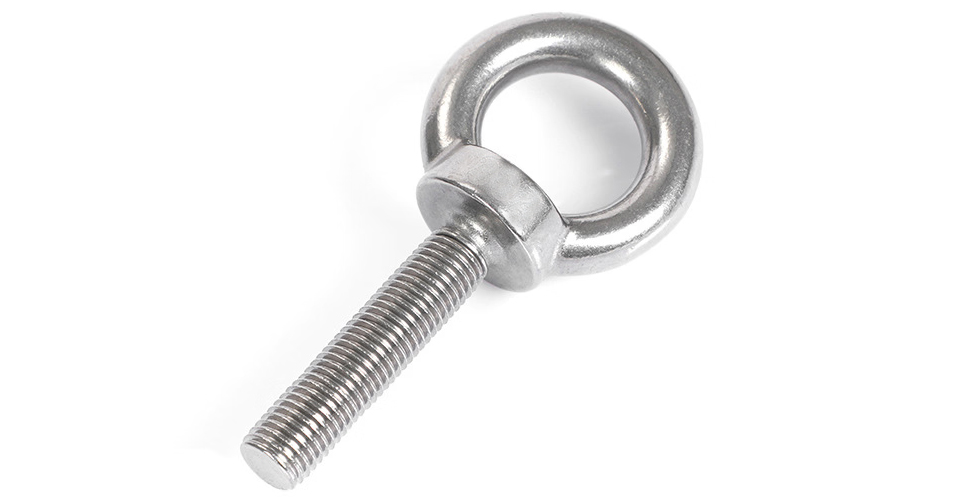

Lifting Eye Bolt
Lifting Eye Bolts
Our heavy-duty Lifting Eye Bolts are engineered for safety and reliability in critical load-bearing applications. Designed with a circular loop head for secure rigging and lifting, these bolts are manufactured to meet strict international standards (DIN 580, ASTM A489). Ideal for lifting machinery, motors, and structural components in industrial, marine, and construction environments.
Technical Specifications
| Head Style | Circular loop (Eye) for lifting & rigging |
|---|---|
| Product Types | Shoulder Eye Bolts, Plain Pattern, Machinery Eye Bolts, Dynamo Eye Bolts |
| Thread Type | Metric Coarse, Metric Fine, UNC, UNF (Partially Threaded) |
| Size Range | M6 to M48 | 1/4” to 2” (Custom large sizes available) |
| Shank Lengths | 10 mm to 300 mm |
| Standards | DIN 580 (Lifting), DIN 582, ASME B18.15, ASTM A489, ISO 3266 |
| Materials | Carbon Steel (C15E), Stainless Steel (304/316), Alloy Steel (Quenched & Tempered) |
| Finish / Coating | Self-Colored, Zinc Plated (Blue/Yellow), Hot Dip Galvanized (HDG), Electro-Polished |
| Load Capacity | Working Working Load Limit (WLL) marked on head (varies by size & angle) |
Key Features & Applications
- High Tensile Load Capacity
- Heavy Machinery Lifting
- Forged Single-Piece Design
- Marine & Offshore Rigging
- Corrosion Resistant Finish
- Electric Motor Lifting
- Safety Factor Certified (4:1 or 5:1)
- Construction & Structural Steel
